Australia And Alaska: Microgrid Leaders

April 20, 2023
What utilities can learn from two wildly different markets and their similarities in integrating distributed energy resources in remote communities.

By Peter Asmus, research director, Guidehouse Insights

Reposted from T&D World with persmission

Once viewed as an isolated market with limited lessons to offer global markets, Australia and Alaska have emerged as leading voices in articulating how best to accelerate the transition to a net zero energy economy. While strong differences separate Australia from Alaska, the two jurisdictions share a lot when it comes to the provisions of vital electricity services to remote and isolated communities.

When I engaged on my first investigation of the global microgrid market in 2009, much of the available data on the types of resources deployed in microgrids came from Alaska and Australia.

The source of my data was the Commonwealth Scientific and Industrial Research Organization (CSIRO), an R&D lab that has long been involved in developing cutting-edge solutions to energy challenges. Since then data provided by the Alaska Center for Energy and Power (ACEP) shows that Alaska has more microgrid capacity installed today than any other US state.

T&D World Live happening this September in Sacramento

Utilities welcome to network and hear all about Microgrids, Fleet Electrification, Transmission Infrastructure

And More...

An estimate from Guidehouse Insights showed Alaska with close to 3,000 MW compared to Australia’s 1,300 MW of microgrids that include some portion of renewable energy and/or energy storage. Australia does include some regional grids in the west that could be considered microgrids, but were not included in the Guidehouse tally.

Likewise, Australia is a market leader in remote microgrids in the Asia-Pacific, particularly on the western side of the country which, like Alaska, lacks traditional grid infrastructure that is common throughout industrialized markets such as the US and Europe. Knowledge sharing between Alaska and Australia to resolve common integration challenges for increasing amounts of renewable energy with isolated power systems that traditionally featured diesel generators has been ongoing. Both regions initially focused on wind and diesel hybrid power systems, but today are turning to solar photovoltaics (PV) and new kinds of battery storage to enable the transition to a lower carbon energy system.

Despite these similarities between Alaska and Australia, there are also some major differences. These differences go beyond climate, with Alaska’s ongoing operational challenges for its remote microgrids focused on cold-weather impacts on technology choices and operational constraints. In contrast, Australia has to deal with extreme hot weather impacts.

New Market Structures

The primary distinctions between Alaska and Australia revolves around market reforms to better integrate distributed energy resources (DERs). Rather than viewing DERs as problems, new market structures can transform them into solutions for grid reliability.

A report by Commonwealth Scientific and Industrial Research Organization, Australian Government (CSIRO) forecasts that by 2050 almost 2/3 of all customers in Australia will feature some form of distributed energy resources (DER).1 Once a country whose primary contribution to energy innovation was the build out of remote microgrids in its western states and territories, Australia is now a hotspot for grid connected virtual power plants (VPPs) in the southeast. The deregulation of energy markets there has accelerated reforms that now make VPPs – the temporary aggregation and optimization of diverse DERs including residential and commercial and industrial (C&I) loads – a virtual necessity for intelligent grid management. Consider the following:

Australian consumers boast one of the highest per capita electricity consumption rates in the world. These consumption levels translate into flexible load that can serve as the basis for demand response (DR) programs and, ultimately, VPPs.

Australia also lays claim to having the highest per capita rooftop solar PV penetrations in the world. Adoption is expected to accelerate over time (Fig 1). Curtailment of solar production is a related challenge with companies such as Synergy seeking solutions.

Like U.S. markets in New Mexico, California, Colorado and Oregon, Australia has also been wracked by wildfires and corresponding power outages, building the business case for grid- connected microgrids too.

As coal plants are retired and replaced by large-scale solar and wind farms, the Australian Energy Market Operator (AEMO) requires greater visibility into the assets used to balance the grid and integration of behind-the-meter with front-of-the-meter assets to maintain grid reliability.

In October of 2021, Australia’s National Energy Market (NEM), a subsidiary of AEMO, instituted a market reform that changed the rules to shorten settlement periods for energy trades from 30 minutes to just five minutes. NEM, one of the largest interconnected electricity systems in the world, represents 80% of Australia’s total energy consumption subsidiary, and serves the densely populated southern and eastern grid-connected portions of the country. Commencing operations in 1998, the NEM market supplies approximately 9 million customers with over 54 gigawatts GW of generating capacity. Over 300 buyers of electricity post more than $16 billion in trading every year.

The five-minute market results in a hyper competitive bidding process that sets the stage for deregulated energy retailers and other market participants to fully embrace the VPP market optimization opportunity. The NEM market (see diagram below) is an energy only market lacking a capacity or day ahead market, so trading activity can be frenzied. Bidders can sell into six frequency services market products as well as eight other grid service markets. There are almost 20 different ways a battery can be allocated with compensation spanning almost a dozen different pricing bands.

Australia’s National Energy Market Footprint

The National Electricity Market (NEM) in Australia is centered in the southern and eastern portions of the country, where the majority of Australians live. It operates on one of the world’s longest interconnected power systems - from Port Douglas in Queensland to Port Lincoln in South Australia - a distance of around 5,000 kilometers.

In Australia, however, the VPP use-case that has risen to the top of the agenda for energy retailers is frequency regulation, especially in South Australia and New South Wales. A report released by Cornwall Insight Australia claims that the majority of utility scale battery assets currently operating in the NEM derive 75-80% of their market revenue from supplying Frequency Control Ancillary Services (FCAS.) The market operator buys these services when it needs them from power generators, big electricity users, and other organizations. The study shows that the location of batteries really does matter.

While FCAS figures to be a market revenue bonanza throughout NEM, South Australia is particularly attractive for a couple of reasons. Despite having a portfolio of large-scale batteries, the region has a significant shortfall in regional suppliers of FCAS due to the proliferation of both behind the meter and in front of the meter variable renewables and corresponding lack of spinning synchronous generation typically used to bolster grid reliability.

Alaska’s Railbelt Transmission System

Like Australia, Alaska does not have an interconnected electric grid network covering the state such as the lower 48 or Europe. Instead, Alaskan communities are all served by some form of a microgrid, some of which are then interconnected via a transmission network to form larger regional grids. The largest of these regional grids is called the Railbelt grid. It is called the “Railbelt Grid” because it runs along the general route of Alaska’s Railroad. It extends for over 600 miles and links three distinct service areas that are each capable of islanding via a transmission backbone, including (from north to south): the greater Fairbanks area, the Matanuska-Susitna Valley and Anchorage metropolitan area, and the Kenai Peninsula.

Alaska’s Railbelt Grid system evolved from some of the first utility companies in Alaska. Over time, utility companies - many of them cooperatives - served the most basic needs for electricity and energy throughout Alaska. As these cooperatives grew, they started to bump into each other, and borders were created to distinguish the control area each utility covered. The six electric utilities along the Railbelt Grid do interconnect with each other but maintain their independence with their own generation sources.

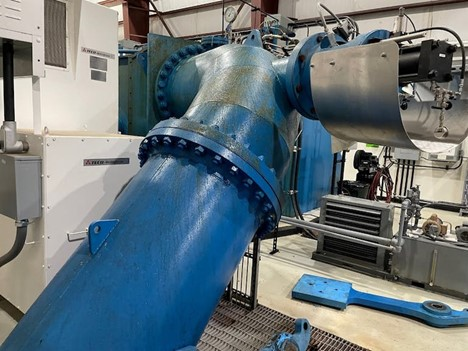

The Railbelt Grid operates on 75% natural gas, 10% hydropower, and the rest coal power. From one perspective, Alaska has a relatively clean grid, since natural gas produces less air pollutants, chiefly CO2, than both coal and oil. But natural gas is still not a totally “clean” energy source as it is not renewable. Ironically, the carbon footprint of the Railbelt Grid is much larger than that of many remote microgrids that have transitioned away from a sole reliance upon diesel to integrate hydro, wind and solar resources, among them utilities serving Kotzebue, Kodiak Island and Cordova.

In addition, the Railbelt Grid, which represents approximately 2,000 MW of total peak generating capacity, is comprised of nested microgrids such as the University of Alaska Fairbanks campus and several military bases. These microgrids bump up against each other but interaction is limited as there is no independent system operator for the transmission system. While resilient, these microgrids are hampered by the lack of interactive DR that could lead to more efficient operations. A lack of transparency on supply and demand across the grid also limits the kind of real-time system wide optimization of DERs and other resources that is taking place today in NEM, which is much larger in size both geographically and in terms of peak demand of over 35,600 MW.

The Railbelt Grid is the only transmission system in Alaska, yet is still comprised of a series of nested microgrids
